ALPHA SERIES DEFINES A NEW QUALITY AND SPEED STANDARD IN INDUSTRIAL TEXTILE PRINTING

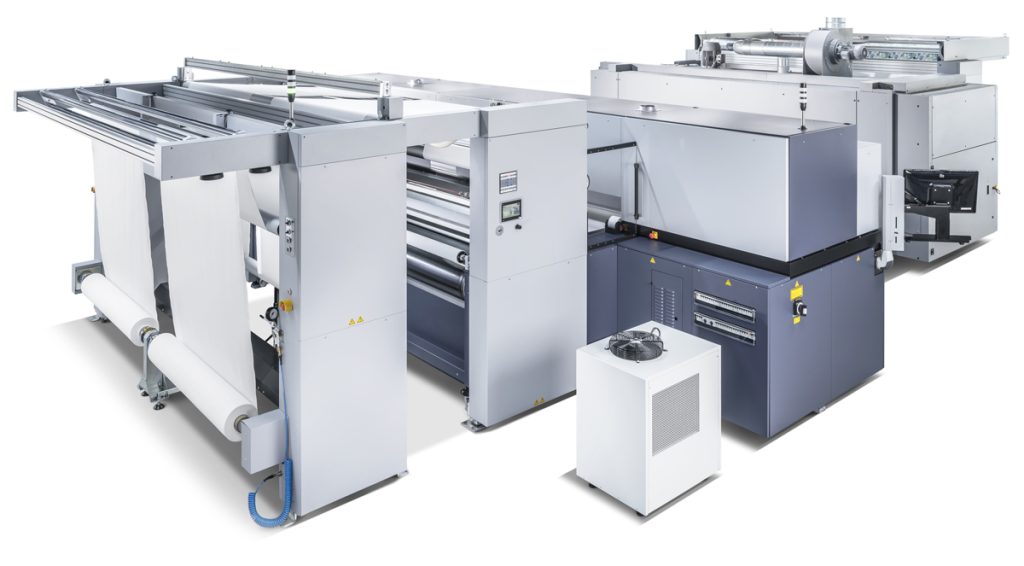

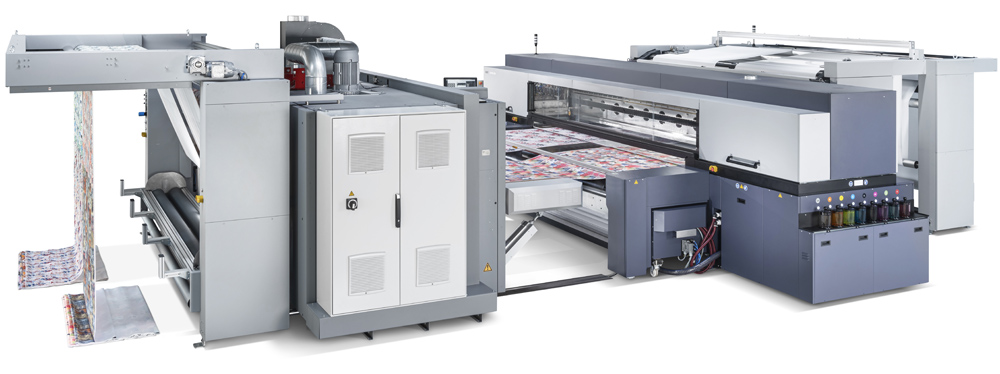

The Alpha 330 is Durst´s flagship for the industrial production of home textiles; with a maximum printing width of 330cm, households and décor products such as duvets, linen, table cloths, curtains and drapes, as well as advertising materials such as flags and banners can be printed in their full width. Depending on the number of print heads, the production output can vary: fully configured with 64 print heads the Alpha 330 produces up to 460 running meters per hour and the Alpha 190 up to 620 running meters per hour.

TECHNICAL DATA

PRINTING SPECIFICATIONS
Productivity - 1-Pass 300 x 600 DPI, 460lm/hr, 1.470m2/hr
2-Pass 300 x 600 DPI, 230lm/hr, 735m2/hr
Resolution - Standard 300 x 600 DPI and 500 x 600 DPI
Drop size modulation - variable droplet sizes of 7/14/21 pl
Printheads - 32/64 Durst Alpha Slots, 8 colours symmetrically arranged (mirrored) print heads featuring 40,960/81,920 nozzles
Printing blanket - With permanent adhesive and integrated washing system
Heated pressing roller
Airblade for automatic belt drying
Dryer - Horizontal dryer with 3 passes: Thermal air dryer of up to 150 °C; with either gas or electricity

MEDIA SPECIFICATIONS
Maximum printing width - 3,300mm
Maximum material thickness - 8mm
Integrated entry for fabric rolls diameter - 500mm max.
Material discharge options - Uproller for roll diameters up to 500mm
Discharge unit for folded textiles
Axial unwinder for big rolls up to 2000mm

FEATURES

• Permanent Ink Circulation and Degassing
• Symmetrical Colour-Alignment
• Touch Screen Interface
• Online Nozzle Control
• Ink Mist Extraction
• Easy Printhead Replacement
• Anti Crash System
• Capping-Station
• Durst Advanced Stroke Control
• Precise Fabric Guidance
• Drying Unit
