P5 210/HS

Durst P5 210/HS
The hybrid printer that elevates the efficiency in your production cycle.

THE MOST EFFICIENT 2.1M HYBRID PRINTER IN THE MARKET.

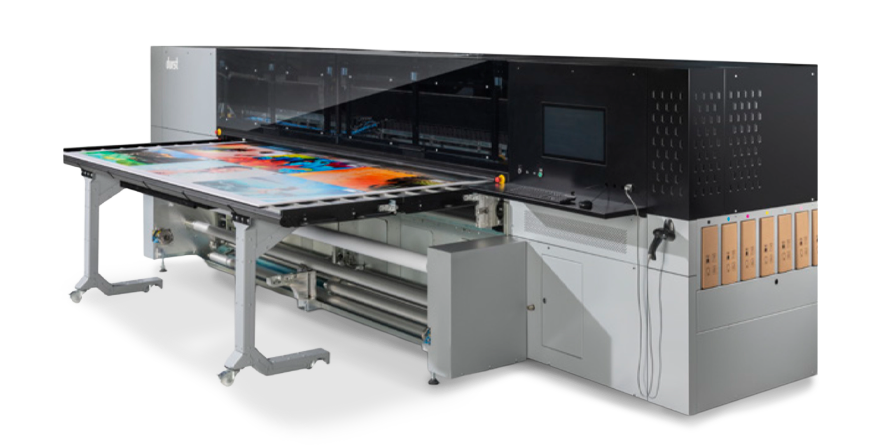

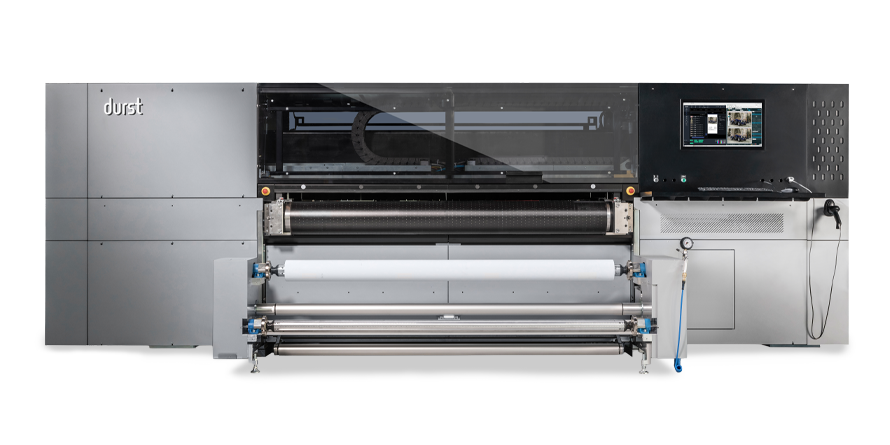

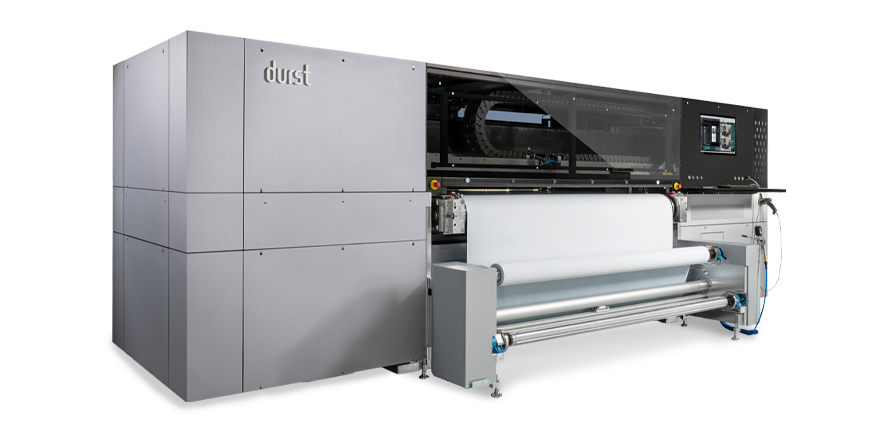

The Durst P5 210/HS is the most efficient and versatile 2.1m industrial large format printer with LED curing technology. With a printing width of 210cm, it is suitable for many applications on a big variety of substrates such as rolls, sheets, corrugated cardboard, and even heavy media such as plexiglass. With the feeding & stacking system Automat the printing process can be fully automated.

TECHNICAL DATA

PRINTING SPECIFICATIONS
Productivity - HS D4: 680m²/hr
HS: 568m²/hr
243m²/hr
Resolution - Up to 1200 DPI
Drop size modulation - Binary
Printheads - Ricoh Gen5
Standard colours - Cyan, Magenta, Yellow, Black
Additional colour options - Light Cyan, Light Magenta, White, Varnish, Primer

MEDIA SPECIFICATIONS
Maximum printing width on boards - 2,100mm
Max. board thickness - 70mm
Minimum board size - DIN-A3 - 29.7 x 42cm
Maximum printing width on 1 roll - 2,070mm
Maximum roll weight - 300kg
Maximum roll diameter - Up to 420mm
Roller tables length - From 900mm up to 2,300mm

FEATURES

Double P5 Double 4 (D4) for a new level of performance
Durst relief (HAPT & gloss effect)
Full automation
¾ automation
High productivity
Fast media change
Multitrack 6
Multiroll printing
Double-sided printing
Automated multitrack board printing
Foldable roll tables
Automatic media detection and thickness control
Safe ink refill identification system
LED technology
Corrugated printing

Max Media Width

Board: 2,100mm
Single roll: 2,070mm

Max Media Thickness

Up to 70mm

Inks

Standard colours:
Cyan, Magenta, Yellow, Black
Additional colour options: Light Cyan, Light Magenta, White, Varnish, Primer

Max Roll Weight

300kgs

Max Print Speed

243m²/hr
HS D4: 680m²/hr
HS: 568m²/hr

Print Resolution

Up to 1200 DPI

DATASHEET

BOOK A DEMO

PRINT MEDIA

ENQUIRE

DURST P5 210/hs FEATURES

DURST P5 DOUBLE 4 (D4) FOR A NEW LEVEL OF PERFORMANCE

DURST RELIEF (HAPT & GLOSS EFFECT)

FULL AUTOMATION

¾ AUTOMATION

HIGH PRODUCTIVITY

FAST MEDIA CHANGE

MULTITRACK 6

MULTIROLL PRINTING

DOUBLE-SIDED PRINTING

AUTOMATED MULTITRACK BOARD PRINTING

FOLDABLE ROLL TABLES

AUTOMATIC MEDIA DETECTION AND THICKNESS CONTROL

SAFE INK REFILL IDENTIFICATION SYSTEM

LED TECHNOLOGY

CORRUGATED PRINTING

APPLICATIONS

Corrugated packaging

Customer demands circle around high image quality, gloss, colour brilliance, personalisation, odour minimisation and ease of production. A direct fit to the broad variety of display and packaging applications in the “non-food” area is the Durst UV- LED-technology. For food compliant packaging Durst provides its GMP compliant water based printing technology, which is odourless, has no ink layer and provides excellent off-set printing quality for primary packaging, displays and boxes.

Industrial decoration

Industrial decoration for special applications as wallcovering, flooring, furniture, good boxes, industrial cans is characterised by printing direct onto woods, metal, plastic and different kind of substrates utilising UV-LED printing technology to achieve high resistance on a wide range of materials.

Indoor decoration

Indoor decoration includes applications such as printing on wood, metal, plastic, furniture and wall papers and onto fabrics as well. Indoor decoration is mainly based on printing with UV-LED technology, as it is characterised by a high adhesion on a wide range of materials or on sublimation or pigment ink technology if the substrate is fabrics or textile. But even the water based printing technology finds its collocation when printing onto corrugated, cardboard or carton substrates is needed.

Outdoor application

Outdoor applications want to reach consumers outside of their home. Thus it needs to be visible, durable and long-lasting. The Durst UV-LED and Sublimation printing technology is ideal to cover these market requirements and generate a broad variety of outdoor applications such as outdoor signage, flags, billboards and posters.

Signage and advertising

Digital Printing & Signage is an important advertising tool to convey information to various target groups. It can be used to promote, inform, identify or give directions in different areas such as the retail sector, shops, airports, stations, events and trade shows. Durst provides the printing technology to realise many different signage and advertising applications.
