Tau RSCi

Durst Tau RSCi
A new benchmark in industrial digital inkjet label printing.

INNOVATION FOR AN INDUSTRIAL LEVEL OF PRODUCTIVITY

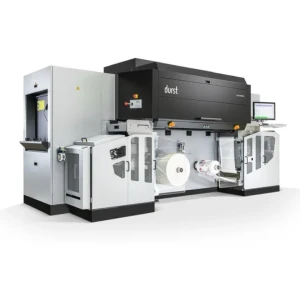

The newest member of the Tau RSC platform is the Tau RSCi. Available in printing widths of 330mm, 420mm or 510mm the printer is using the Tau RSC UV inks. The press is designed to take over mid to long run jobs but is also able to produce short-run jobs in the most economic way.

The user-friendly design including jumbo winders and roll lifts allows fast roll changes and good accessibility to print heads, UV-lamps and transport rollers. The integrated large inspection table provides space for visual inspection. The Tau RSCi is equipped by default with a chill roller to guarantee maximum material and application flexibility.

TECHNICAL DATA

PRINTING SPECIFICATIONS
Productivity - 80m/min
Resolution - Up to 1200 x 1200 DPI
Minimum drop size - Greyscale levels: 2pl – 3 levels: 2 – 4 – 6pl
Printheads - Dimatix Samba
Ink/Colours - Tau RSC LED ink: CMYK OVG W
Tau RSC UV ink: CMYK OVG W
Colour Channels- Up to 9 colour channels & 95% Pantone coverage

MEDIA SPECIFICATIONS
Maximum printing width - 338mm, 420mm, 510mm
Substrate thickness - 100μm to 500μm. With chill roller: 20μm to 500μm (only aluminum foil and PET)
Substrate width - Min. 200mm – max. depending on printing width
RSCi 350: max. 350mm
RSCi 430: max. 430mm
RSCi 520: max. 520mm
Loading capacity - Roll diameter max. 1,016mm, max. 450kg

FEATURES

RSC print quality
Innovative approach
Industrial scalability
TAU RSC UV inks
Automatic print head cleaning
Precise temperature control
Solid machine construction

Max Print Width

338mm,
420mm, 510mm

Max Substrate Thickness

100 μm to 500μm. With chill roller: 20μm to 500μm (only aluminum foil and PET)

Inks

Tau RSC LED & UV Inks: Cyan, Magenta, Yellow, Black, Orange, Violet & Green

Tau RSC Low Migration Ink: Cyan, Magenta, Yellow, Black, Orange & Blue

Max Roll Weight

450kg

Max Print Speed

80m/min
@ full resolution

Print Resolution

1200 x 1200 DPI

DATASHEET

BOOK A DEMO

PRINT MEDIA

ENQUIRE

Durst Tau RSCi FEATURES

DURST P5 DOUBLE 4 (D4) FOR A NEW LEVEL OF PERFORMANCE

DURST RELIEF (HAPT & GLOSS EFFECT)

FULL AUTOMATION

¾ AUTOMATION

HIGH PRODUCTIVITY

FAST MEDIA CHANGE

MULTITRACK 6

MULTIROLL PRINTING

DOUBLE-SIDED PRINTING

AUTOMATED MULTITRACK BOARD PRINTING

FOLDABLE ROLL TABLES

AUTOMATIC MEDIA DETECTION AND THICKNESS CONTROL

SAFE INK REFILL IDENTIFICATION SYSTEM

LED TECHNOLOGY

CORRUGATED PRINTING

DUAL ROLL

APPLICATIONS

Variable data

Multiple variable elements, such as barcodes, serial numbers, text or images, can be placed together on one label. All variable elements can either be in a single colour or printed in multi colour at full resolution and speed. Combined with the high ripping speed of Durst Workflow Label variable data jobs can be processed fast and efficient.

Speciality packaging

In the past, Durst has gained a vast know-how about speciality packaging applications such as blister, tubes, tags, tickets or folding cardboard. The Tau RSC platform printers are able to print on a large variety of substrates and the software solutions offered by Durst Workflow Label ensure an integrated workflow combined with secure handling of sensitive job data.

Industrials

Tau RSC inks provide outstanding light fastness, temperature and abrasion resistance for durable applications. The ink is very well suited specifically for electronic, oil and lubrificant labels. Compliance with UL and BS5609 section 3 for Tau RSC inks has been achieved.

Online printing

The Tau RSC presses can be fully integrated in an automated workflow where the operator does not need to do much more than hitting the start print button. The excellent up time of the printers give you the possibility to fulfill customer orders as fast as possible. Clients love the high resolution and vivid colours of the prints.

Chemicals

The Tau RSC UV ink provides excellent durability, resistance and light fastness. Resistance has been proven for example with tests against gasoline or methylated spirit. Many Durst Tau RSC clients produce millions of labels for chemical applications: oil bottles, fertilisers, detergents, hand sanitisers and many other industries.

Food & beverages

Abrasion resistance and temperature stability is key for these applications. Furthermore, the vivid and strong colors of the Tau RSC UV inks will make products stand out. With the new Tau RSC Low Migration UV inks products can be produced in compliance with general industry regulations and standards.

Beauty & care

Tau RSC provides the highest opacity white, vivid colours and a screen-like feeling of the prints. Patternware add additional value to further enhance the appearance on the shelf.

Wine & spirits

Due to the high resolution and finest drop-size of 2pl, Tau RSC platform printers deliver highest print quality even on textured and uncoated substrates.
